Mosquitoes belonging to the Culex (Culex) species have been shown to be among the important epizootic or epidemic vectors of arboviruses including St. Louis encephalitis (SLE) virus and West Nile Virus (WNV) in the United States (Tsai & Mitchell 1989, CDC 2002). Accurate identification of field-collected Culex mosquitoes is essential for epidemiological and control efforts. Field-collected specimens of females of Culex (Culex) species are often difficult to identify, because adult collections are commonly made with various trapping methods and, unfortunately, the characteristic patterns of scales used to identify Culex adult females are frequently rubbed off by the devices or simply lost as the mosquito ages with the result that unidentified Culex species are lumped together as Culex spp. for identification and for virus analysis. During the last 30 years, several attempts have been made to identify field-collected Culex mosquitoes by methods other than the morphological methods. These include identification of Culex species by isoenzyme electrophoresis in Indiana (Saul et al. 1977; Corsaro & Munstermann 1984) and by a species-diagnostic polymerase chain reaction assay (Crabtree et al. 1995; Miller et al. 1996; Crabtree et al. 1997). Since some Culex species present in Florida are different from species found in other parts of the United States, the objective of this study was to identify females of Florida’s four common Culex (Culex) species (Cx. nigripalpus Theobald, Cx. pipiens quinquefasciatus Say, Cx. restuans Theobald and Cx. salinarius Coquillett) by using isoenzyme electrophoresis.

Materials and Methods

Results

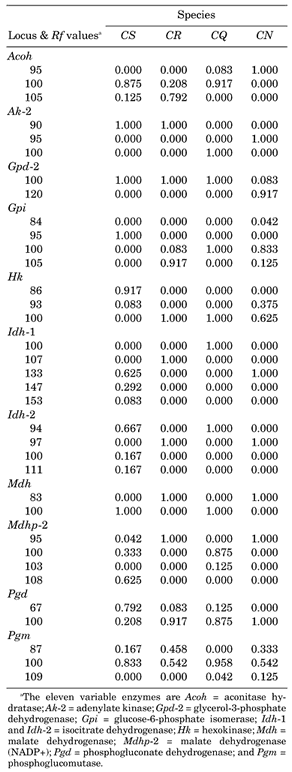

Allele frequency data for four Culex species from Florida are presented in Table 1. Comparison of the frequency values of enzyme loci showed that even though most of the enzyme loci have differences in Rf values that could separate different species from each other, the Rf values in only four of the loci (Gpd-2, Hk, Idh-1 and Mdh) were distinctive enough to be used to separate the four species (Table 1; Fig. 1). These four loci are as follows: malate dehydrogenase (Mdh) is monomorphic in Cx. salinarius and Cx. p. quinquefasciatus at Mdh¹⁰⁰, and in Cx. nigripalpus and Cx. restuans at Mdh⁸³ (Table 1; Fig. 1a). Hexokinase (Hk), that is represented by three-banded pattern and sometimes by a six-banded polymorphic pattern (Tabachnick & Howard 1982), is slower in Cx. salinarius (Hk^{86, 86 /93}) than in the other three Culex species (Cx. restuans Hk¹⁰⁰, Cx. p. quinquefasciatus Hk¹⁰⁰ and Cx. nigripalpus Hk^{93,100, 93/100}) (Table 1; Fig. 1b). Isocitrate dehydrogenase-1 (Idh-1) is polymorphic in Cx. salinarius Idh-1^{133, 133/147,133/153} but homozygous in the other three species (Cx. restuans Idh-1¹⁰⁷, Cx. p. quinquefasciatus Idh-1¹⁰⁰ and Cx. nigripalpus Idh-1¹³³) (Table 1; Fig. 1c). Glycerol-3-phosphate dehydogenase (Gpd-2^{120, 100/120}) is moving faster in Cx. nigripalpus in one allele than the other three species (Cx. restuans Gpd-2¹⁰⁰, Cx. salinarius Gpd-2¹⁰⁰, and Cx. p. quinquefasciatus Gpd-2¹⁰⁰) (Table 1; Fig. 1d). Since Gpd-2 in Cx. nigripalpus is sometimes heterozygous, caution is needed in using it as a distinguishing character. From this information we developed a key to separate the four Culexspecies (Table 2).

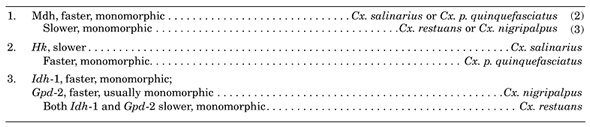

Further analysis of the data in Table 1 showed that Cx. p. quinquefasciatus exhibited a low number of alleles per locus (1.3 ± 0.1), the lowest percentage of polymporphic loci (23.1%) and the lowest Hardy-Weinberg heterozygosity (0.054 ± 0.03) from the other three species (Cx. nigripalpus, 1.6 ± 0.2, 46.2% and 1.95 ± 0.07; Cx. restuans, 1.3 ± 0.1, 30.8% and 0.091 ± 0.05; and Cx. salinarius, 1.8 ± 0.2, 69.2% and 0.207 ± 0.05, respectively). Since Cx. p. quinquefasciatus was monomorphic for the four enzyme loci chosen to be used in the key (Table 2), we used it as a control instead of Ae. aegypti (ROCK strain) to identify other Culexspecies. Thus, using Cx. p. quinquefasciatusas a control (#7 in Figs. 1e-1h) and the key (Table 2), we were able to identify correctly 24 randomly selected individuals of all four Culexspecies (Figs. 1e-1h, only 12 individuals are shown in these Figs.). Individuals numbered 3, 5, 8, 10, 11 and 13 (Fig. 1e) had a faster moving Mdh allele and represented either Cx. salinarius or Cx. p. quinquefasciatus, whereas individuals numbered 1, 2, 4, 6, 9 and 12 had a slower Mdh allele representing either Cx. restuans or Cx. nigripalpus. Individuals numbered 5, 8, 10 and 13 (Fig. 1f) had a slower moving Hk allele that identified it as Cx. salinarius, and distinguished it from the other two faster moving individuals numbered 3 and 11 that were identified as Cx. p. quinquefasciatus. Individuals that represented either Cx. restuans or Cx. nigripalpus and were numbered 1, 4, 9 and 12 (Fig. 1g) had a faster moving Idh-1 allele that identified it as Cx. nigripalpus, and distinguished it from a slower moving Idh-1 allele in individuals numbered 2 and 6 that were identified as Cx. restuans. Culex nigripalpus individuals numbered 1, 4, 9 and 12 were identified by using Gpd-2 enzyme loci. The most common Gpd-2 in Cx. nigripalpus was faster than Gpd-2 in the other three Culex species (Fig. 1h).

Conclusion

Our results show that Culex (Culex) species from Florida can be unambiguously distinguished from each other by using four isozymes (Mdh, Hk, Idh-1 and Gpd-2) in sequence. These studies suggest that from various types of trapping collections for Culexspecies, those individuals that cannot be identified to separate species with standard morphological characters can be identified by isoenzyme analysis, instead of pooling them together as Culex spp. It is worth pointing out here that the four species of mosquitoes used in this study were collected from January through April, when all four species were present in Florida. It is possible that some of the isoenzyme systems may show some degree of polymorphism when these species of mosquitoes are collected at different times of the year or from different locations as observed in Cx. nigripalpus (Nayar et al. 2002) and Cx. p. quinquefasciatus (Nayar et al. 2003). Therefore, a word of caution may be appropriate. A broader application of this technique to identify Culexspecies from other areas must be confirmed with samples from different localities before this technique should be used outside Florida.

Isoenzyme analysis by electrophoresis technique is reliable, accurate and simple to perform once the electrophoretic equipment is set-up in the laboratory (Black & Munstermann 1996) and a person is trained to run the equipment. This technique is especially useful when freshly collected or frozen Culex mosquitoes are to be used for virus analysis or surveillance during different seasons of the year; however, this technique cannot be used for dead or dried specimens. Isoenzyme analysis is less expensive and faster than the PCR technique for DNA identification of different Culex species (Miller et al. 1996; Crabtree et al. 1995; Crabtree et al. 1997), but DNA analyses can be used for dead or dried specimens.
